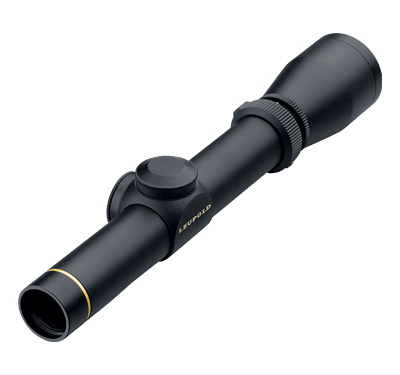

VX-I 1-4x20mm Shotgun/Muzzleloader Scope
Ready for the fast, close-up action common to shotgun and muzzleloader hunting.
Parallax preset for 75 yards.
Leupold’s® standard multicoated lens system delivers optimal clarity, brightness, and contrast in any light.
Micro-friction dials are marked in ¼-MOA increments for easy windage and elevation adjustments.
Available with the Heavy Duplex® or range-estimating Turkey Plex® reticle.
At maximum magnification, the Turkey Plex reticle subtends a turkey’s head (crown to wattles) at 40 yards.
The eyebox is generous and extremely forgiving at all magnification settings, for fast target acquisition.
Durable matte black finish resists nicks, scratches, and abrasions.
Rugged and absolutely waterproof.
Covered by the Leupold Full Lifetime Guarantee
Length (A) 9.2 in
Tube Length (B) 5.5 in
(C) 2.1 in
(D) 2.2 in
Eyepiece Length (E) 3.1 in
Objective Length (F) —
Objective Diameter (G) 1.0 in
Eyepiece Diameter (H) 1.6 in
Tube Diameter (I) 1.0 in
Actual Magnification 4.2 (1.6)
FOV @ 100 yds (ft) 28.5 (75.0)
FOV @ 100 m (m) 9.5 (25.0)
Eye Relief (in) 3.8 (4.3)
Eye Relief (mm) 97 (109)
Obj. Clear Aperture 0.8 in / 20 mm
Weight 9.0 oz / 255 g
Elevation Adj. Range (MOA) 67
Windage Adj. Range (MOA) 67
|
