Hull Vise (*select size in Options)

Item Number: VISE2
 Review Average:
 Number of Reviews: 1
 View ReviewsReview this item

Detailed Description

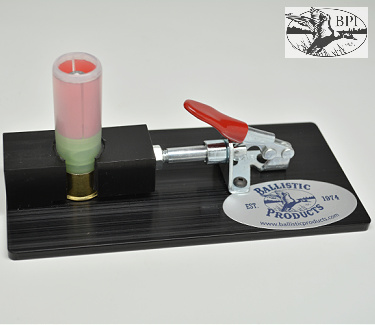

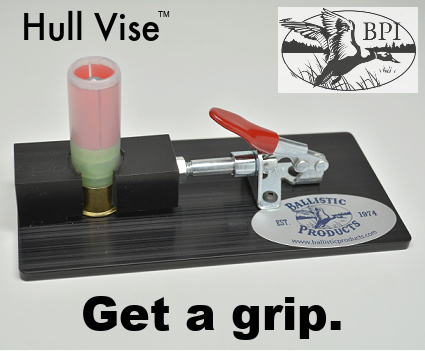

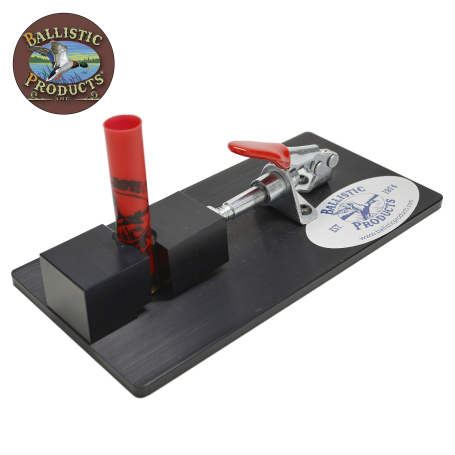

Hull Vise
A BPI exclusive original. Improved design and finish.

We first introduced the Hull Vise way back in 1989. The Curmudgeon needed a "helping hand" in his loading lab. He designed the Hull Vise and it became a necessary tool on every loading bench around the world. Machined from aircraft-grade aluminum, this is a sturdy tool that holds shotshells in place with an adjustable quick-release locking mechanism. The Hull Vise provides safety and necessary stability. The Hull Vise allows you to perform detailed loading operations, such as roll crimping, with ease and precision. The Hull Vise (large) is factory set to load 10ga through 20ga.

We've made improvements to our gripping design and we now anodize the Hull Vise in attractive black.

  • Smallbore Hull Vise: Smallbore gauge blocks (sold separately) are also available and are easily installed on the 10ga-20ga model.

Using the Hull Vise:
Roll-crimped shotshells and specialized handloading procedures are easy to manage when the shells are upright and held in place. Like any great tool, the Hull Vise saves time and expensive components, makes loading easier, and helps you produce better shotshells.

BPI Hull Vise and Roll Crimpers: A perfect match.
Available in these sizes:

Roll crimpers can be used with a hand drill or a drill press.

The Easy Art of Roll Crimping:

1. Start with any uncrimped paper or plastic hull. New, uncrimped hulls are available in almost every type and length. Once-fired hulls can be cut down 1/4" and then roll crimped. For example, a 3" hull can be cut down to 2-3/4" in length and then roll crimped. Our Trim Doctor tool was designed for this procedure.

2. Prior to crimping, load the shell as you would any other shotshell load. We recommend using a Wooden Reloading Block during this process to keep loads organized and avoid spillage.

3. After dropping the shot and before crimping, place either an Overshot Card or Clear Overshot Disk on top of the pellets.

4. Secure the hull. Though it does not take much force to hold the shell, this procedure is made easy with the use of a Hull Vise.

5. Place the roll crimper on top of the hull. Our roll crimpers are designed to best work in a clockwise rotation. Start spinning the drill and apply very light pressure. When the edge becomes pliable through a combination of heat and pressure, roll the lip down until it makes contact with the overshot card wad.
Curing: Your roll crimper will begin to cure as you use it more and more. Roll crimping will become faster and easier as your tool gains experience.

6. Check progress as you proceed.

Cartridge manufacturer's tip: Many cartridge manufacturing companies use our roll crimper and some of these clients have told us that they like to put just a single drop of household oil (e.g., 3-in-1 Oil) on the surface of the roll crimper for every few hundred rounds.

Product Type: Shotshell loading tool/accessory.
Size: 3" x 6" x 1-1/2" h.
Usage: For clamping and holding shotshells for detailed handloading procedures and roll crimping.

What others are saying about the Hull Vise:

  • "If you roll crimp, you want one of these. I get it located on the table of my drill press, clamp it down, and go town!
    ~Don Button, from Facebook


  • "Hull vises are a wicked handy thing to have. "
    ~R. Kominsky, from Facebook

  • "Just hand loaded and roll crimped my first 25 shells! Your Advantages manual, Hull Vise, and Roll Crimper make quality hand loading easy. I don't think I will ever fold crimp again!! Thank you for putting out quality products!!"
    ~Benjamin C. Tackett, Jr., Blythe, CA


 Product ReviewsClick here to review this item
Great for special loads 2/13/2024
I have an older version of this vise, before the anodized base. Ive used it for years. It is excellent for specialized loading, such as when roll-crimping, or using traditional wads.
- Tom A, MD
