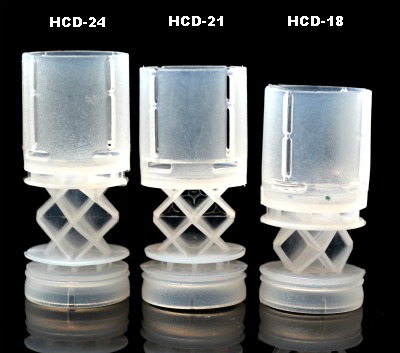

Helix Cushion Driver-24 Wad (250/bag)
Predominantly a 1-ounce wad, but also used with some 7/8-oz. loads. The soft, pliable cushion system is designed to provide the shooter with reduced recoil and to allow a wide range of load adjustment with a consistent level of wad pressure resistance. The "vacuum-trap" anti-powder migration ring is the outstanding feature of this wad, making it an excellent choice for straight-walled hulls such as Fiocchi.
SPECIFICATIONS:
- Gas Seal: arched dome, .725" diamter, .215" thick - two powder rings and two stabilization rings.
- Overall length: 1.720"
- Seal to cup bottom: .980"
- Shotcup depth: .740"
- Shotcup type: lay-back hinged
- Optimum range: 20-55 yards
- Mid-range, going-away and standard targets
Part # |
3/4 to 7/8oz Sporting |
Gauge |
Purpose |
Capacity |
Length |
Depth |
Bag/Cs Qty. |
072SPK |
Super Spark |
12ga |
7/8-1oz & int'l |
7/8 to 1 oz |
1.735 |
0.723 |
250/5000 |
020HCD24 |
Helix-Cushion Driver 24 |
12ga |
7/8-1oz & int'l |
7/8 to 1 oz |
1.716 |
0.731 |
250/5000 |
072EML |
EML |
12ga |
3/4-7/8oz & int'l |
7/8 (24gr.) |
1.746 |
0.715 |
250/5000 |
072REX |
Rex-24 |
12ga |
3/4-7/8oz & int'l |
3/4 to 7/8oz |
1.744 |
0.723 |
250/5000 |
020L078 |
078 Lightning |
12ga |
3/4-7/8oz & int'l |
7/8 (24gr.) |
1.725 |
0.592 |
250/5000 |
|
