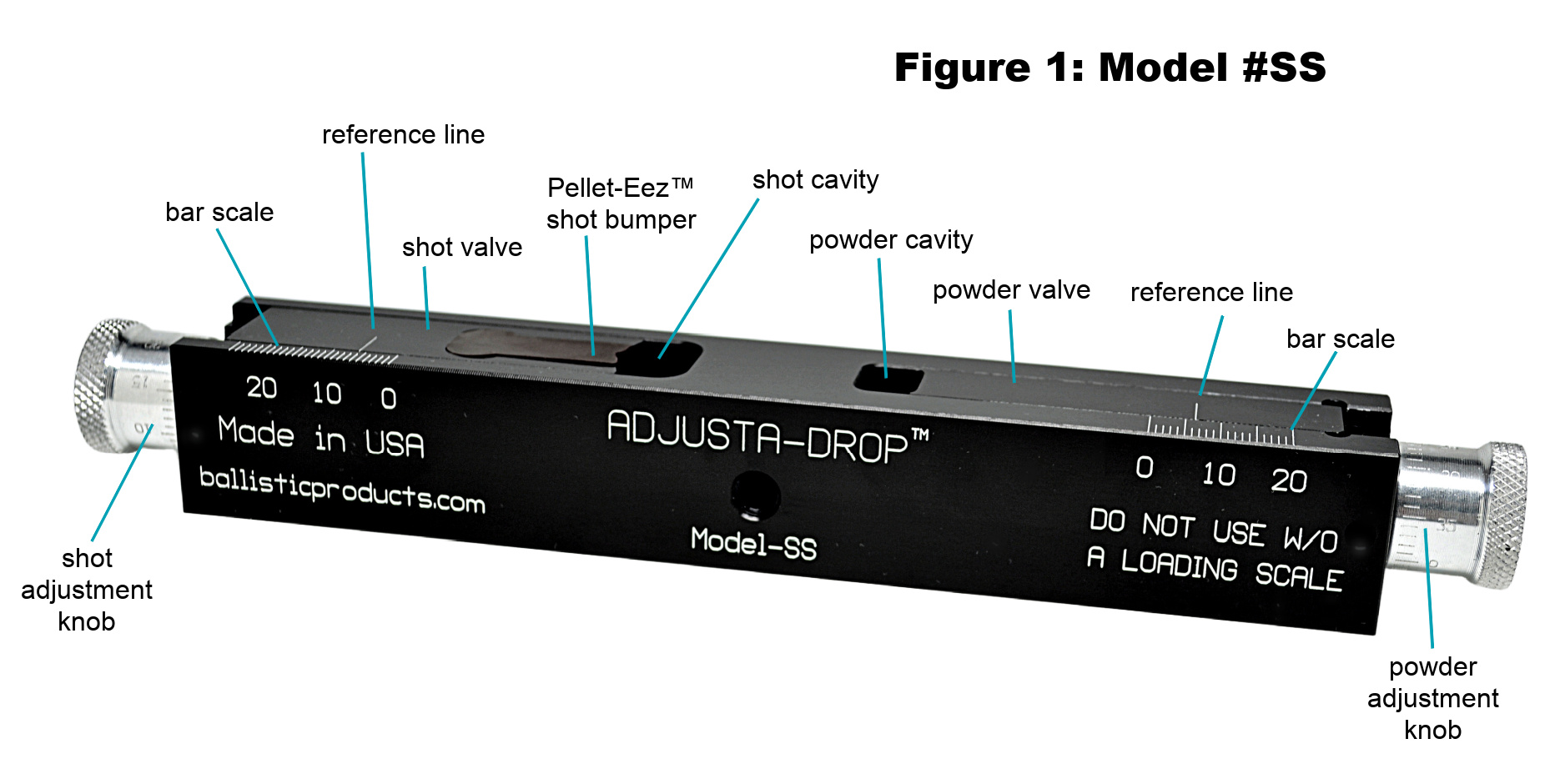

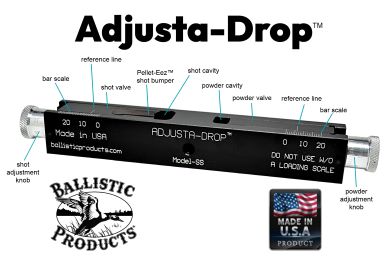

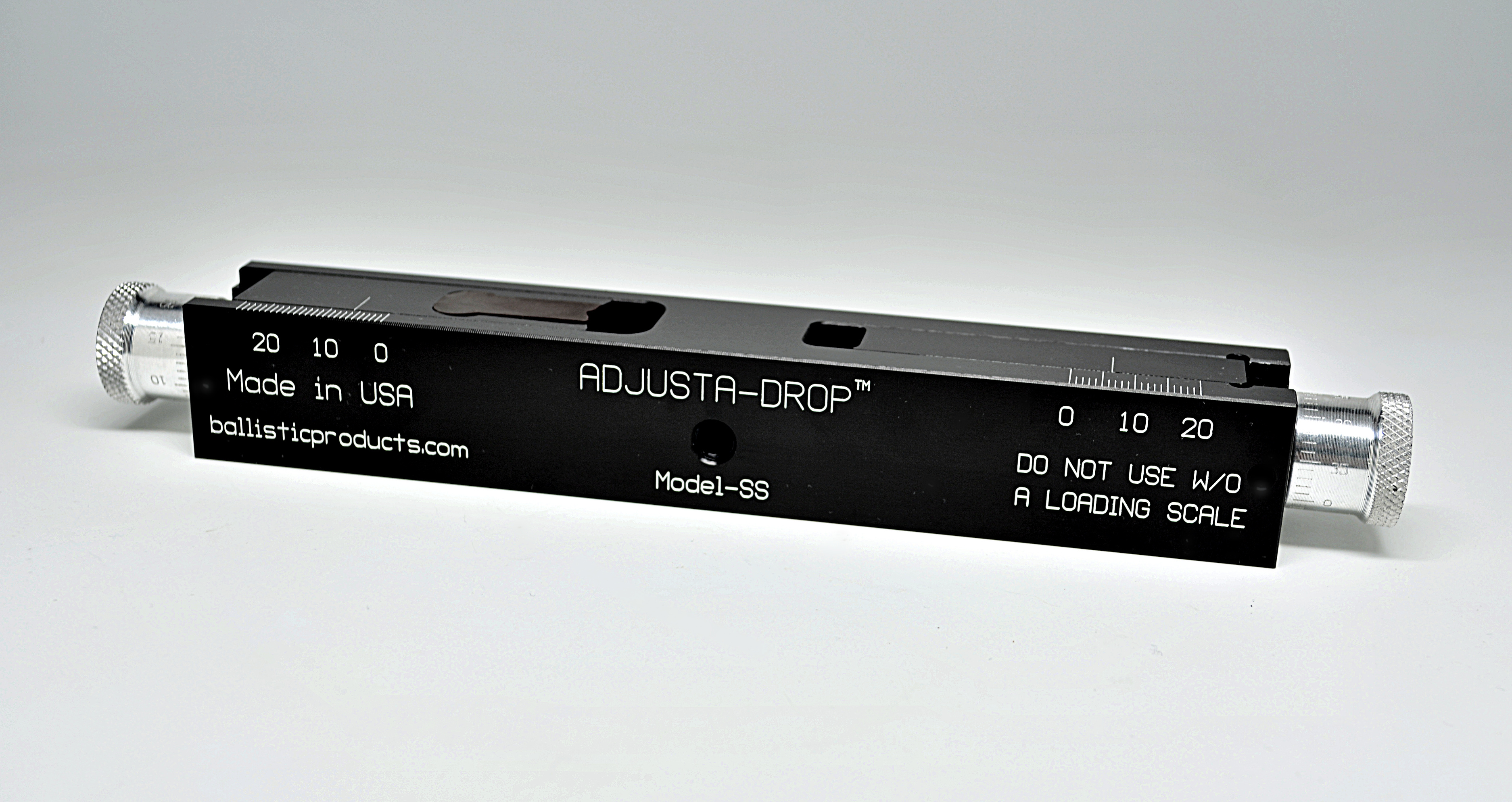

Adjusta-Drop Charge Bar (single-stage)

Adjusta-Drop Charge Bar
Model-SS

BPI's ADJUSTA-DROP Charge Bar for MEC single-stage reloaders eliminates the need for a costly collection of bushings and charge bars. The ADJUSTA-DROP Charge Bar is fully adjustable for shot and powder drops that would normally require bushings and bars and has an attractive black anodized finish with engraved adjustment scales that are highly visible. The entire charge bar body is meticulously machined aluminum with a zinc-plated carbon steel threaded rod.

NEW FOR 2024: The Adjusta-Drop Charge Bar now comes fully assembled. Please note that the user should not have to remove or tighten any of the threaded hardware on the Charge Bar.  If you feel there is an issue with the hardware, please contact BPI customer service prior to attempting to make any adjustments.

MEC Rubber Grommet (#130304G) and Brass Washer (#130304W): The Adjusta-Drop Charge Bar is designed to utilize MEC original rubber grommets and brass washers . These parts are essential for accurate drops in any charge bar. They must be placed inside the threaded cups of the measure assembly in order to prevent leakage. BPI sells these specific parts on our website.

(Note: It is important that the Brass Washer (#130304W) is installed with the barbs pointing upward AND that the Rubber Grommet (#130304G) is installed over the barbs of the Brass Washer. Press with slight downward pressure on the Rubber Grommet once it is installed.  It is important to check your shot/powder bottle threads for any flashing, which might disrupt an otherwise tight seal. Smooth out and deflash the threads. This is where the molding lines come together. Once deflashed, the bottle screws into the measure assembly completely to seat on top of the grommet.)

MADE IN USA: ADJUSTA-DROP Charge Bar is made entirely right here in Minnesota: Quality, value, and American-made pride come with every single ADJUSTA-DROP Charge Bar.

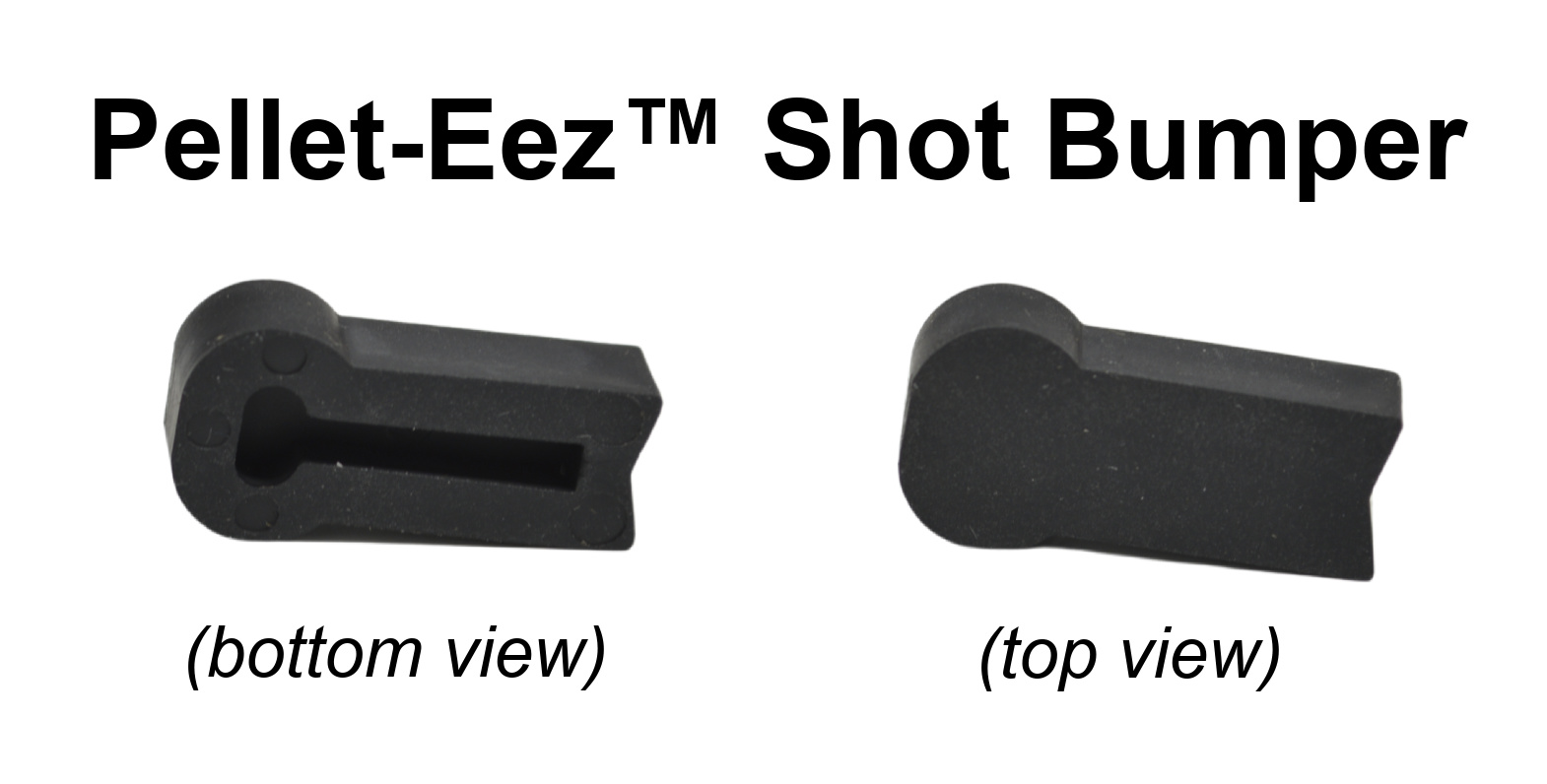

• Comes complete with our Pellet-Eez Shot Accommodation Bumper
• Fully Adjustable for shot and powder
• Designed, Machined, and Assembled in Minnesota to Exacting Standards

WARNINGS/CAUTIONS: DO NOT USE THE ADJUSTA-DROP CHARGE BAR WITHOUT A FULLY CALIBRATED LOADING SCALE. POWDER DROPS MUST BE CONFIRMED BY A RELIABLE SCALE. BALLISTIC PRODUCTS, INC. DISCLAIMS ALL POSSIBLE LIABILITY FOR DAMAGES, INCLUDING ACTUAL, INCIDENTAL, AND CONSEQUENTIAL, RESULTING FROM USAGE OF INFORMATION OR ADVICE CONTAINED IN THIS AND OTHER PUBLICATIONS, LABELS, CATALOGS AND BOOKLETS.  USE DATA AND ADVICE AT YOUR OWN RISK AND WITH CAUTION. WHERE DATA LIST SPECIFIC COMPONENTS, NO CHANGES OR SUBSTITUTIONS FOR THESE COMPONENTS CAN BE MADE WITHOUT RISKING SIGNIFICANT CHANGES IN THE LEVEL OF BALLISTIC PERFORMANCE AND/OR SAFETY OF THE LOADS SHOWN.  FOLLOW LOADING DATA EXACTLY AND DO NOT SUBSTITUTE COMPONENTS. WE MAKE NO WARRANTIES EXPRESS OR IMPLIED, LIMITED OR FULL. FAILURE TO COMPLY WITH THESE AND OTHER STANDARDS OF RELOADING MAY RESULT IN ACCIDENTS WITH SERIOUS INJURY AND/OR DEATH TO THE SHOOTER AND/OR BYSTANDERS. KEEP OUT OF REACH OF CHILDREN. WE DISCLAIM ANY AND ALL LIABILITY FOR DAMAGE OR INJURY THAT MAY RESULT FROM YOUR HANDLOADED SHOTSHELLS AS WE HAVE NO CONTROL OVER ANY OF THE NUMEROUS POSSIBLE VARIATIONS IN COMPONENT PRODUCTION LOTS, IN TOOL AND DIE DIMENSIONS, IN YOUR LOADING PRACTICES AND PROCEDURES. THE INDIVIDUAL RELOADER IS SOLELY RESPONSIBLE FOR ANY VARIATION THAT MAY BE INCURRED BY ASSEMBLED AMMUNITION. TO AVOID SERIOUS INJURY OR DEATH TO SHOOTER AND BYSTANDERS, THIS PRODUCT SHOULD ONLY BE USED IN GUNSMITH-INSPECTED GUNS DESIGNED FOR MODERN SHOTSHELLS. IF GUN FAILS TO FIRE, KEEP POINTED IN SAFE DIRECTION FOR 30 SECONDS, THEN UNLOAD CAREFULLY. WEAR EYE AND EAR PROTECTION AND OBSERVE PROPER GUN SAFETY AT ALL TIMES. ALL PRODUCTS SOLD "AS IS."

MADE IN USA
